Solar PV Roof fixing pantile

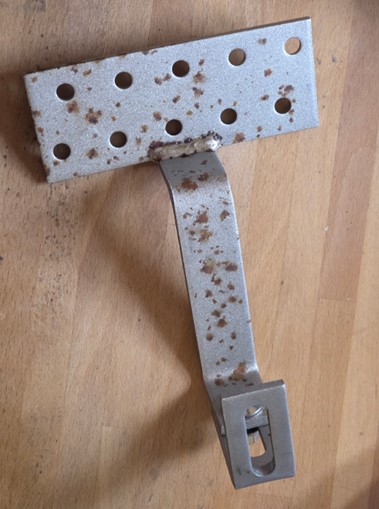

Solar panel Vario 1 brackets roof fixing for pantile coverings, for rail support, to enable Solar PV equipment a secure platform for solar roofs. This piece is designed to hold and connect solar rails securely in place, to a pantile roof covering. Note. These twin adjustable Vario 1 brackets will suit most type’s of wavy flat tiles.

Vario roof fixing solar brackets

These parts may be required to complete the Vario 1 brackets roof structure.

RAIL T BOLTS

T BOLT SERRATED COLLAR FIXING NUTS

PAN TILE BRACKET STAINLESS STEEL FIXING SCREWS

SOLAR PANEL 3m RAIL

Range of solar PV systems fixing parts available

Solar PV Brackets & fixings

Solar panel fixing parts

• Calzip claw fixing Beveled roof solar fixing bracket
• Plain tile bracket On roof slate or plain tile solar PV rail fixing bracket
• Rafter fixing Attaches solar PV rails to wooden beams under corrugated roofs
• Slate bracket Ideal for flat tile roof to attach solar PV rails
• Pan tile bracket (best for curved concrete tile roof coverings)
• Marley roof bracket (2mm thick bracket ideal for longer concrete tiles)
• Vario 2 bracket (suited to wavy concrete tile covering)
• Seam roof clamp fixing (metal covered roofs)
• PV roof rails (3.65m & 2.5m lengths) Designed to clamp onto brackets using T bolt & nut
• PV roof rail joiners Designed to mechanically hold two lengths of rail together
• Mini rails Designed to be secured onto box section trapezoidal roof
• Speed rail Designed for multiple solar panels onto large box section roof 2.5m or 3.65m lengths

• Speed rail joiners Used to connect speed rail lengths together mechanically
• T bolts mechanically hold fixings to stainless steel solar PV fixing parts M10 x 30mm
• T nuts M10 stainless steel nuts c/w captive washer
• Lightning clamp used to protect DC circuit
• PV rail slot nuts used to attach various solar PV fixing parts in roof rails
• Socket screws sizes M8 threaded from 10mm – 100mm length
• Rafter top plates used in conjunction with rafter screws and other solar PV rail assembly parts
• Bracket fixing screws hold roof brackets securely onto timbers under slates
• Plain tile bracket flashing prevent water entering roof
• Slate/plain tile bracket flashing will stop driving rain entering roof structure
• PV panel end clamps solar panel holding clamps, available in silver or black finish
• PV panel mid clamps used to connect panels side by side on rails
• PV rail end caps attach to end of roof rails to finish installation
• Speed rail base fixing used to support speed rails
• Speed rail base screws secure base fixings to metal box roof
• Speed rail lock set will prevent any movement of speed rail
